Olivi Hay Tedders
|
|
 |
|
|
All units feature Long Life, Heavy Duty spring steel tines,
with 4 coils for strength and flexability, as well as super
balloon tires for fast, smooth operation in all ground conditions. |
||

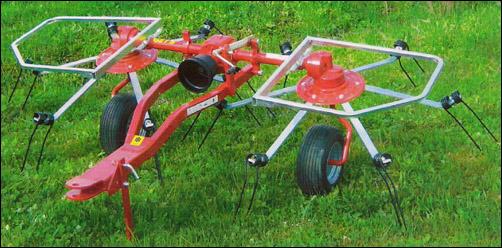

G2/S
|
Model
|
# Rotors
|
Tines Per
Rotor |
Working
Width |
Power
Req'd |
Weight
LBS |
Tires
|
Transport
Width |
|
G2/S
|
2
|
6
|
10'
|
15 HP
|
403
|
16.6.6x8
|
9' 9"
|

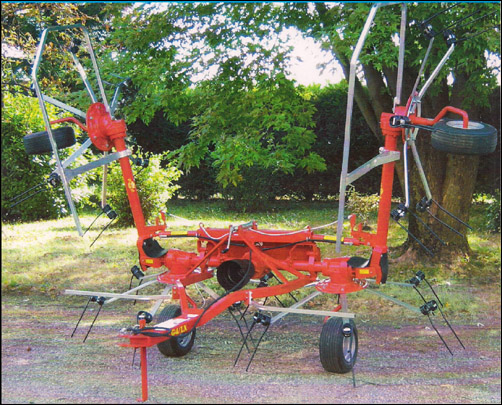

G4/LX
|
Model
|
# Rotors
|
Tines Per
Rotor |
Working
Width |
Power
Req'd |
Weight
LBS |
Tires
|
Transport
Width |
|
G4/LX
|
4
|
6
|
19'
|
25 HP
|
980
|
16.6.50x8
|
12'
|
 |
 |
|
Optoinal carriage tandem for increased transport
stability
|
Mounted Coupling Flange for greater durability
|

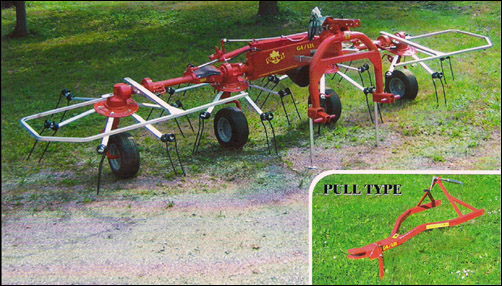

G4/LM - G4/LH
|
Model
|
# Rotors
|
Tines Per
Rotor |
Working
Width |
Power
Req'd |
Weight
LBS |
Tires
|
Transport
Width |
|
G4/LM
|
4
|
6
|
17'
|
23 HP
|
890
|
16.6.6x8
|
11'
|
| G4/LH | 4 | 6 | 17' | 23 HP | 920 | 16.6.50x8 | 11' |
Folding units feature a unique, heavy duty, double joint hinge system to ensure an easy, problem-free lift cycle.
